CAIZER W50+ - Wheel Alignment Scissor Hoists

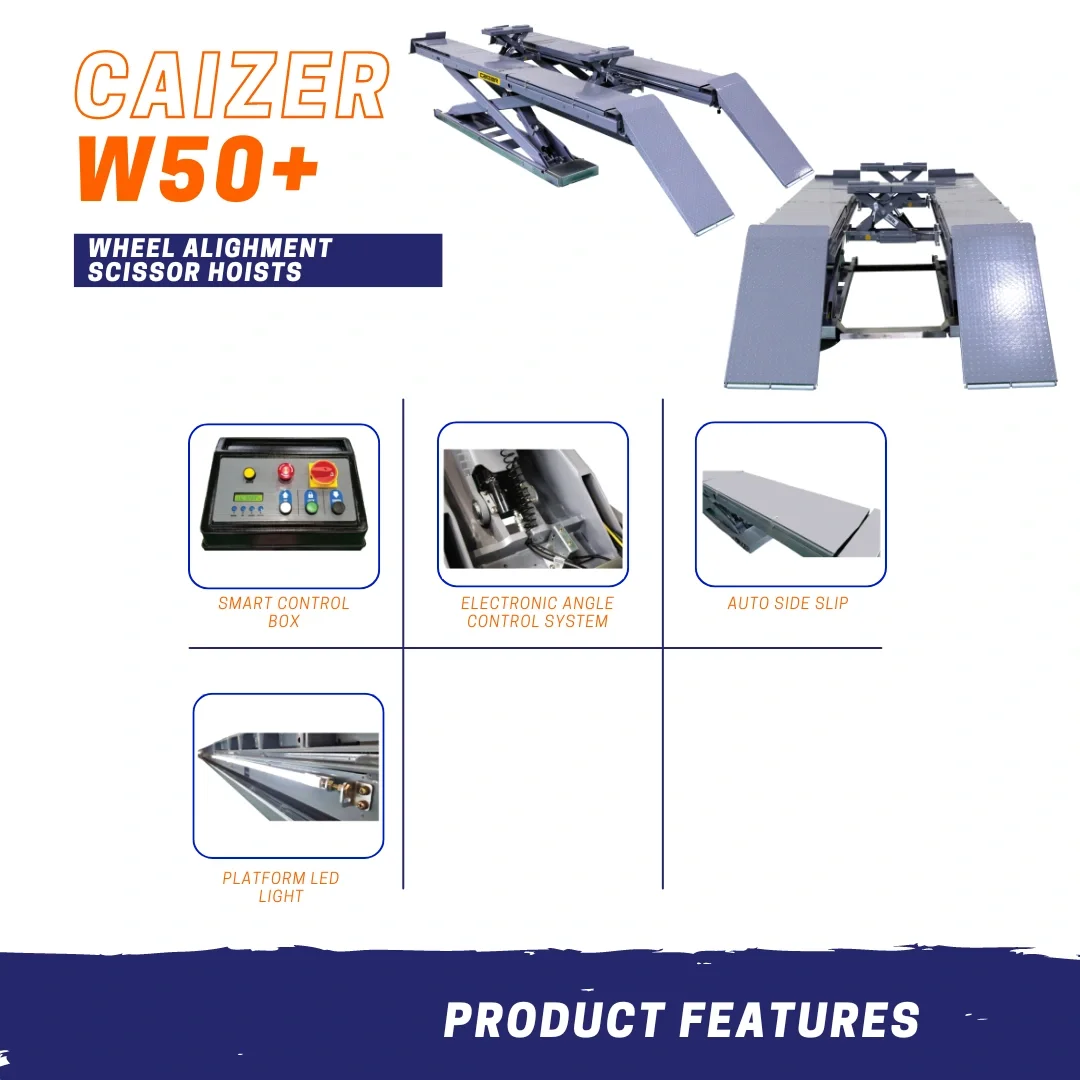

CAIZER W50+ ALIGNMENT HOIST PRODUCT DETAILS

• 5,000KG

• NEW SERIES 2 MODEL

• NO FRONT OR REAR CROSSBARS, CLEAR ACCESS BETWEEN PLATFORMS

• RETRACTABLE CROSSBEAMS SUPPLIED FOR USING BOTH JACKS FOR UNDERBODY REPAIR

• HUGE AMOUNT OF EXTRA STEEL REINFORCEMENT TO ENABLEREMOVAL OF CROSSBARS

• ELECTRONIC SYNCHRONISATIONAUTOMATICALLY KEEPS PLATFORM LEVEL AND IN SYNC

• AIR OPERATED LOCKING REAR SLIP PLATES (AUTO OR MANUAL) CONTROL BOX MOUNTED LCD PANEL, SHOWS HOIST FUNCTIONS AND DIAGNOSTICS

• LED LIGHTS AUTOMATICALLY TURN ON AS HOIST RAISES, TURNOFF AT GROUND LEVEL


CAIZER W50+ SPECIFICATIONS

• Model  :   CaizerW50+

• Lifting Capacity  :  MAIN : 4,500 Kg
                                         JACK : 2,500Kg

• Max. Height  :  MAIN : 1,740 mm
                                  JACK : 455 mm

• Min.Height  :  MAIN : 174 mm
                                JACK : 235 mm

• Stroke  :  MAIN : 1,566 mm
                     JACK : 220 mm

• Overall DIM  :  Width x Length x Height : 3,425 x 6,035 x 275(mm)
                            Max.Height : 2,215 (mm)

• Ascending Time  :  Main : Approx. 40 ~ 60 sec
                                         Jack : 5 ~ 15 sec

• Descending Time  :  Main : Approx. 30 ~ 50 sec
                                           Jack : 5 ~ 15 sec

• Elec & Motor  :  1PH : 2.5HP x 4P x 220V x 60Hz
                                  3PH : 2HP x 4P x 220V / 380V x 60Hz

• Control  :  Control Panel (Push Button)

• Net Weight  :   About 1,600 Kg
