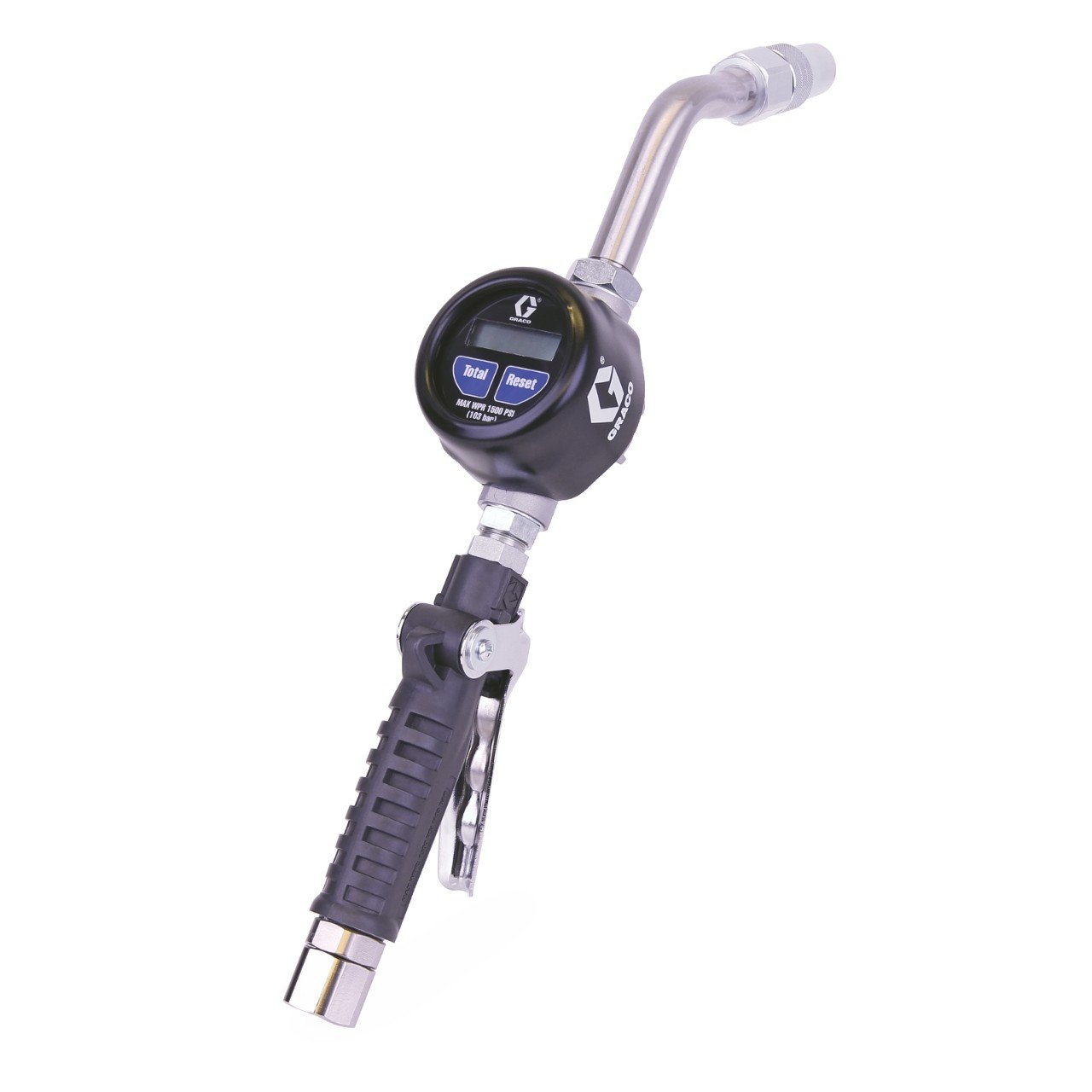

PM 20 Electronic Pre-set Oil Meter Rigid Extension 13 mm (1/2 in.) Inlet NPT

Features Use Gracos PM8 and PM20 electronic pre-set meters to dispense fluids quickly, reliably and accurately to vehicles, trucks, yellow iron machines and more in the most challenging, extreme environments. Proven in Harsh Conditions Sealed electronics (IP69K) are protected against direct pressure washing and dust. Twist-Close Nozzle Prevents Leaking Multiple extensions available including rigid, flexible and gear lube. Long-Life Valve Design Poppet design offers exceptional valve life for heavy usage applications. Easy Valve Operation Ergonomic four-finger trigger for user comfort protected by a robust full length trigger guard. Durable Cast Body Designed for heavy duty and harsh applications. High-Flow Rates Capable of up to 75.7 lpm (20 gpm). Long Battery Life Features four easily-replaceable AA batteries. Specifications Technical Specifications Calibration Type Factory Calibrated Compatible Material Petroleum-Based Oil, Synthetic-Based Oil, Antifreeze Dispense Type Pre-set Display Type Electronic Extension Type Rigid Fluid Inlet Thread Gender Female Fluid Outlet Thread Gender Female IP Rating 69K Inlet Size (cm) 1.27 Inlet Size (in) 1/2 Inlet Size (mm) 12.7 Inlet Thread Type NPT Maximum Flow Rate (cc/min) 75708 Maximum Flow Rate (cc/sec) 1262 Maximum Flow Rate (l/min) 75.7 Maximum Operating Temperature (C) 52 Maximum Recorded Dispense 19999 Maximum Storage Temperature (C) 85 Maximum Totaliser 19999 Maximum Working Pressure (MPa) 10 Maximum Working Pressure (bar) 102 Maximum Working Pressure (kPa) 10340 Maximum Working Pressure (psi) 1500 Meter Accuracy 0.5 Meter Accuracy (%) 0.5 Meter Pressure Loss (bar) 10.3 Bar at 12 GPM Meter Pressure Loss (psi) 150 PSI at 12 GPM Metering Gun Weight (kg) 2.4 Minimum Operating Temperature (C) -29 Nozzle Type Manual Outlet Size (cm) 1.905 Outlet Size (in) 3/4 Outlet Size (mm) 19.05 Outlet Thread Type ORB Overall Height (cm) 18.3 Overall Height (mm) 183 Overall Length (cm) 54.4 Overall Length (mm) 544 Overall Width (cm) 10.4 Overall Width (mm) 103.5 Recommended Environment Indoor/Outdoor Series 20 Trigger Lock Locking Trigger Protection Type Lock Off Button Type Electronic Metered Dispense Valve Unit of Measure Quart, Pint, Litre, Gallon Valve Type Metered Wetted Material Aluminium, Stainless Steel, Carbon Steel, Acetal, Nitrile Rubber, Geolast
