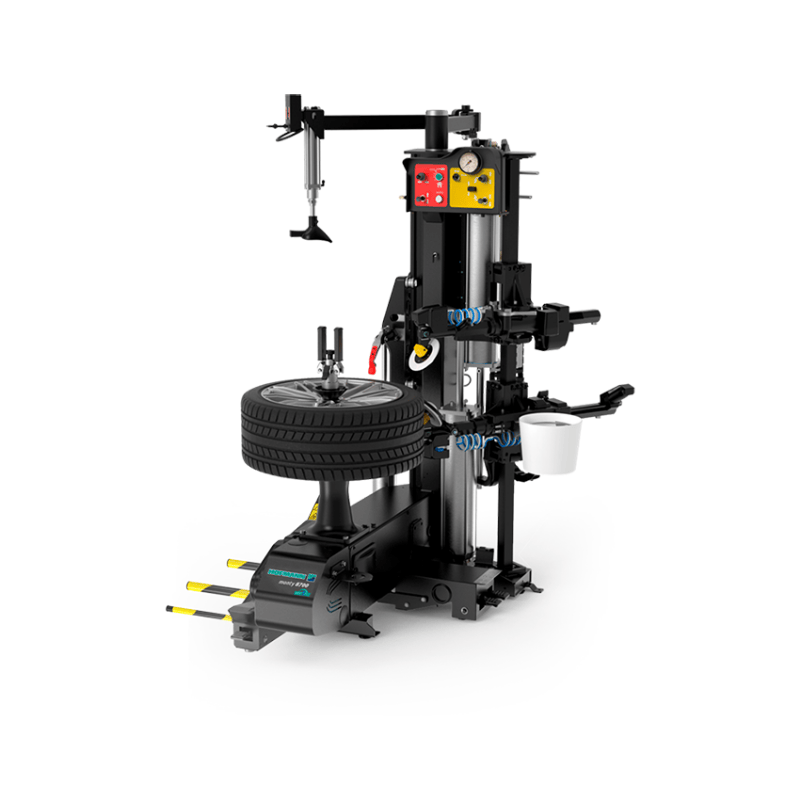

Professional fitter with an auxiliary arm with homologation for the VAG group, with pneumatic lifting of the working arm
Tire changing machine for use in high-traffic tire repair shops and car dealerships – with pneumatic tilting column, 24" external clamping capacity, 15" maximum wheel width and smartSpeed technology
RECOMMENDED BY VOLKSWAGEN
Certified by wdk
Automatic speed control using an inverter that maximizes speed depending on the applied torque
– First speed from 7 rpm for critical tasks
– Second speed automatically adjusts between 7 and 18 rpm depending on the applied torque
Double-acting cylinder for tire edge unsticking
Mounting head adjustable in a spaced position relative to the rim
Vertical positioning of the mounting head is also done pneumatically – all settings are controlled via a single switch – fast and ergonomic
Sliding jaws with a rounded profile and plastic protection inside offer an external clamping range of 10″ to 24″, reduced clamping time and increased clamping force thanks to a shorter stroke cylinder
Conventional mounting/dismounting tool (working range 8″ – 24″) with steel mounting head and plastic inserts for gentle wheel handling
Rotary table with center-type sliding jaws. Two clamping cylinders provide 30 to 40% more clamping force than single-cylinder machines
Pneumatic tilting column with pedal
Column pneumatically locked in working position
Side tire edge remover with adjustable blade pitch for different wheel diameters, adjustable in three positions for high performance and flexibility
Tool box with integrated pressure gauge and four ergonomic shelves for valves, tools and accessories, attached to a separate tower
Pedal blower
Quick inflation valve
Low cabinet offers ergonomic height even with very wide castors
Maximum wheel width of 15″ covers all current OEM wheels on the market
Optional wheel lift CW1025
Finish RAL 7040
M/D Tool Technology: M/D tool and bead lever
Tower Technology: Pneumatic tilt-back
Clamping System: Rotary table with clamping jaws
Vertical Tool Positioning: Pneumatic
Jaw Type: Adjustable sliding jaws
Rim Diameter Capacity: 10″–24″
External Clamping Range: 10″–24″
Maximum Wheel Width: 380 mm
Maximum Wheel Diameter: 1000 mm
Breaking Force: 12 kN
Rotation Speed: CW 7–18 rpm & CCW 7 rpm
Speed Control: smartSpeed™ automatic control
Bead Inflation Method: Top inflation not supported
Tool Box: Standard included
Easymont Pro Assist System: Standard
Wheel Lift: Optional
Load Capacity: 70 kg
Power Supply: 16 A
Installed Motor Power: 0.9 kW
Dimensions (L × W × H): 1920 × 1615 × 1685 mm
Weight: 310 kg
